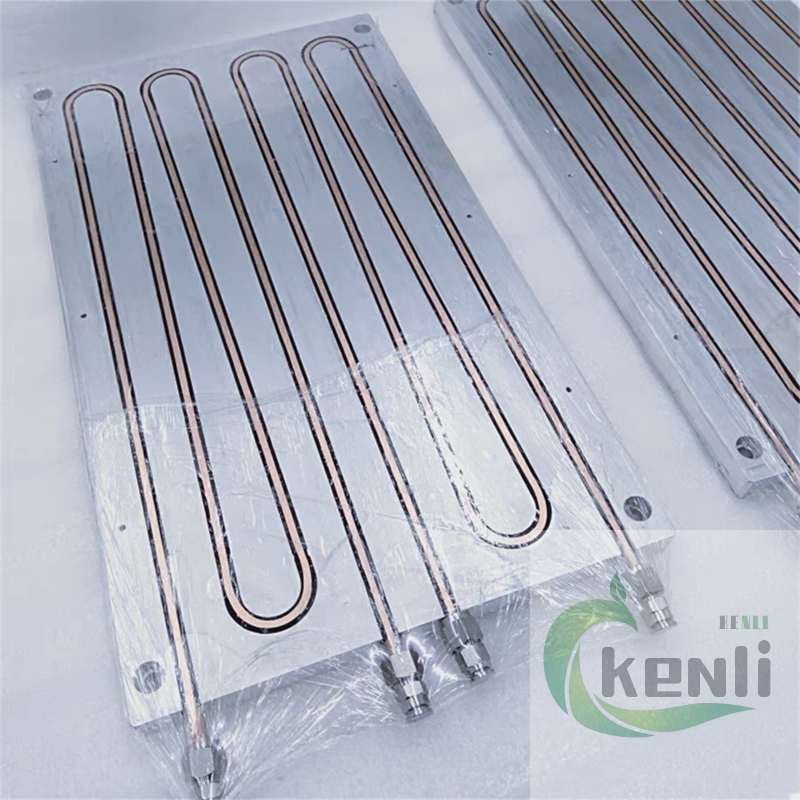

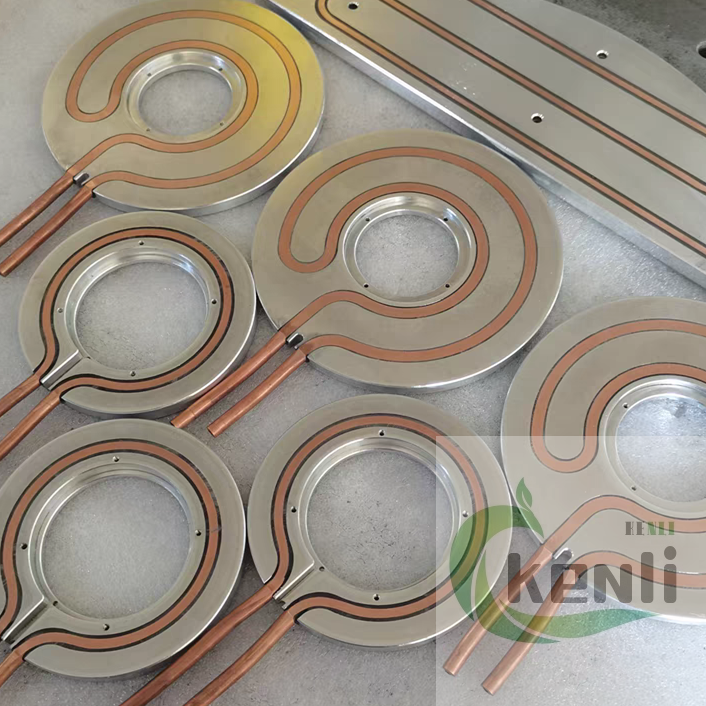

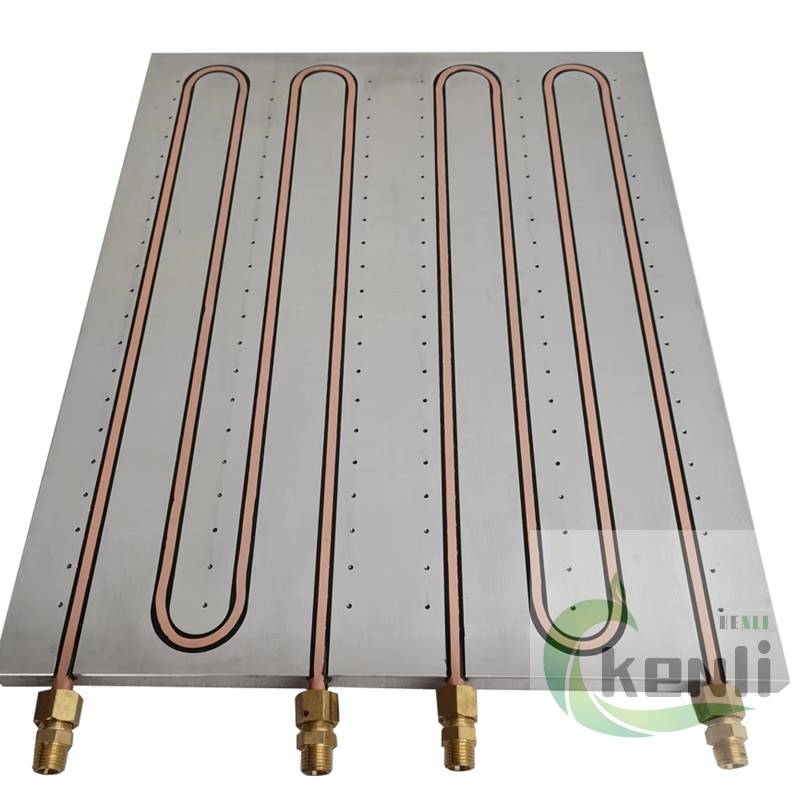

Pressed Cold Plates With Copper Tube

Model NO:Pressed Cold Plates With Copper Tube
Cold Style:Water-cooled
Body Material:Aluminium,Copper
Cooling Fluid Type:Water
Welding Manner:Brazing/FSW/Roll Bond
Structure:Sealed Type
Working Pressure:1.2 to 5 Bars
Cooling capacity:200W
Surface roughness:Ra 3.2 um
Flatness:0.1 mm
Recommended Coolants:Deionized Water,Inhibited Glycol and Water,Dielectric fluid
Delivery:Sample: 7-10working days,Goods: 20 working days
MOQ: 1Piece
Warranty: 5 years
After Warranty Service:Online suppor

INQUIRY

Product Details

Product Tags

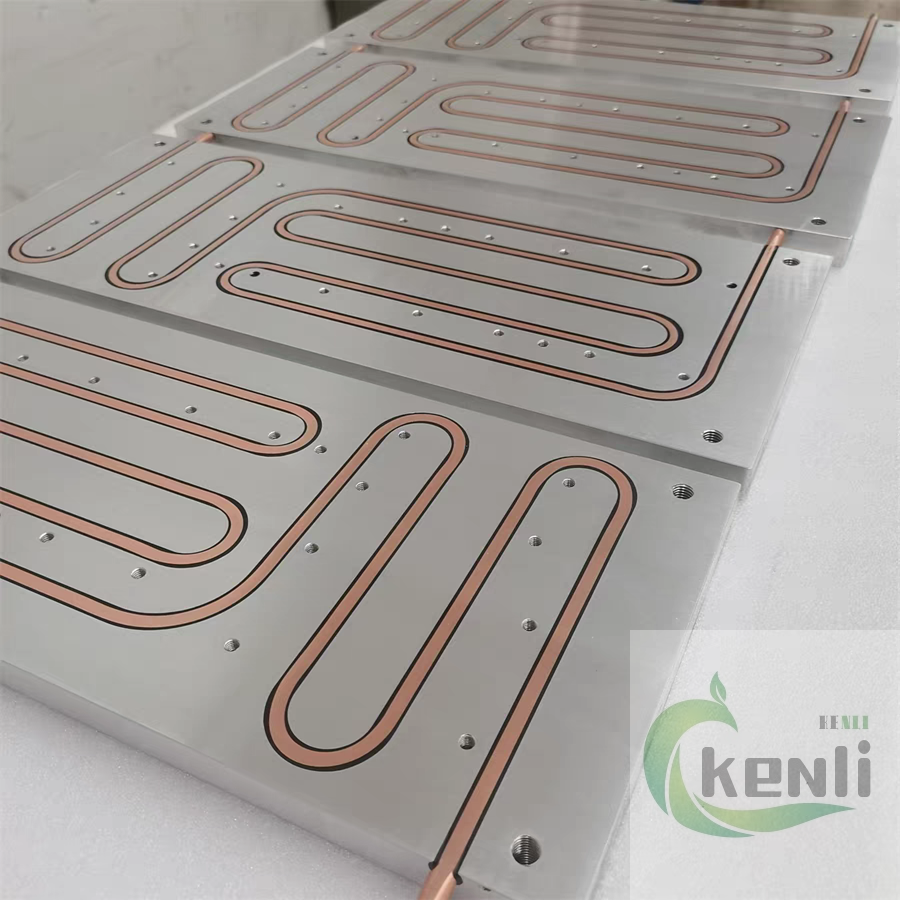

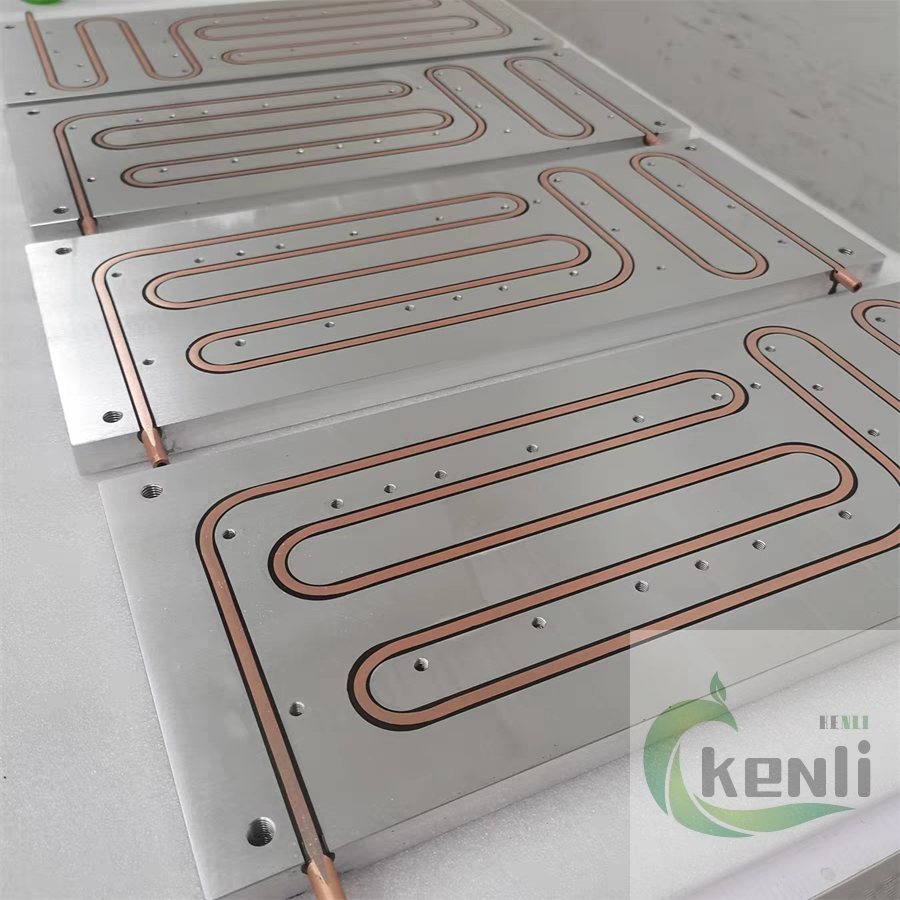

Pressed Cold Plates With Copper Tube

Product Name	Pressed Cold Plates With Copper Tube
Radiator Type	Cross-flow
Material.	Copper(1020/1100),Aluminum(1060/1070/6063/6061).
Detailed size	As the below drawing or as per custom design
Tolerance	+/- 0.005mm, According to Your Specification
Max width	Ultra wide extruded heatsink can be made by our unique friction welding technology
Working Pressure	At least 1 bar
Sample service	Samples with different size are available for prototypes test within 1 week
Drawing Format	2D: Pdf or Dwg; 3D: Step or Igs
Production process	CNC Drilling, Bending, Aluminium profile fabrication, Precise cutting ect
Surface treatment	Degreasing,(black) anodizing, sand blasting, painting , chromating and laser marking
Reference standard	GB/T 3190 -2008, GB/T 14846-2008, ISO
Experience	More than 20 years professional manufacturing experience
Application	LED Lighting,Solar Inverter,Power Supply Equipment,Medical Ventilator,IGBT,Electric Automotive,Desktop Liquid Cooling
