Vacuum Brazed Liquid Cold Plate

Model NO:Vacuum Brazed Liquid Cold Plate
Cold Style:Water-cooled
Body Material:Aluminium
Cooling Fluid Type:Water
Welding Manner:Brazing/FSW/Roll Bond
Structure:Sealed Type
Working Pressure:1.2 to 5 Bars
Cooling capacity:200W
Surface roughness:Ra 3.2 um
Flatness:0.1 mm
MOQ: 1Piece

INQUIRY

Product Details

Product Tags

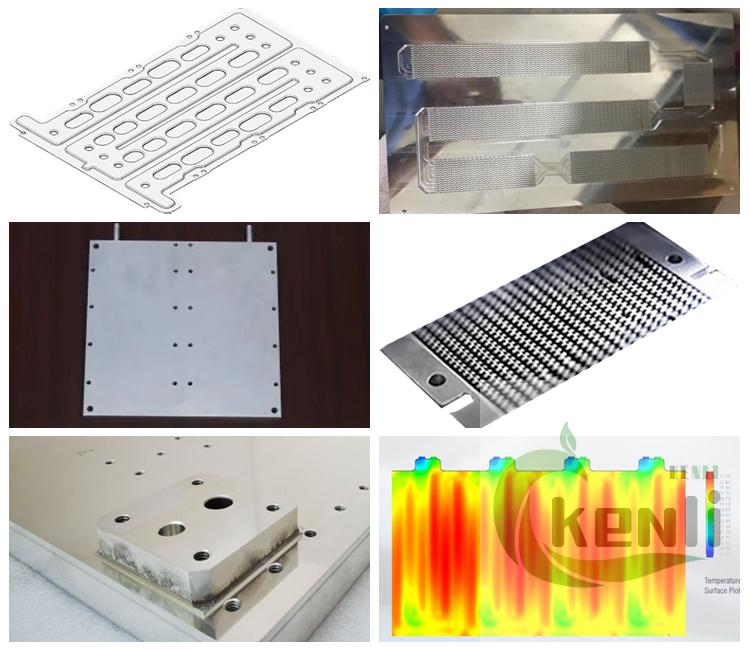

Brazing Aluminum Water Cooling Plate

Product Name	Brazing water cooling plate
Material	Aluminium alloy 3003,6061 and 6063
Detailed size	As the below drawing or as per custom design
Tolerance	+/- 0.005mm, According to Your Specification
Max width	Ultra wide extruded heatsink can be made by our unique friction welding technology
Working Pressure	At least 1 bar
Sample service	Samples with different size are available for prototypes test within 1 week
Production process	CNC machining, extrusion or other suitable processes
Surface treatment	Degreasing,(black) anodizing, sand blasting, painting , chromating and laser marking
Reference standard	GB/T 3190 -2008, GB/T 14846-2008, ISO
Experience	More than 20 years professional manufacturing experience
Application	LED Lighting,Solar Inverter,Power Supply Equipment,Medical Ventilator,IGBT,Electric Automotive,Desktop Liquid Cooling
